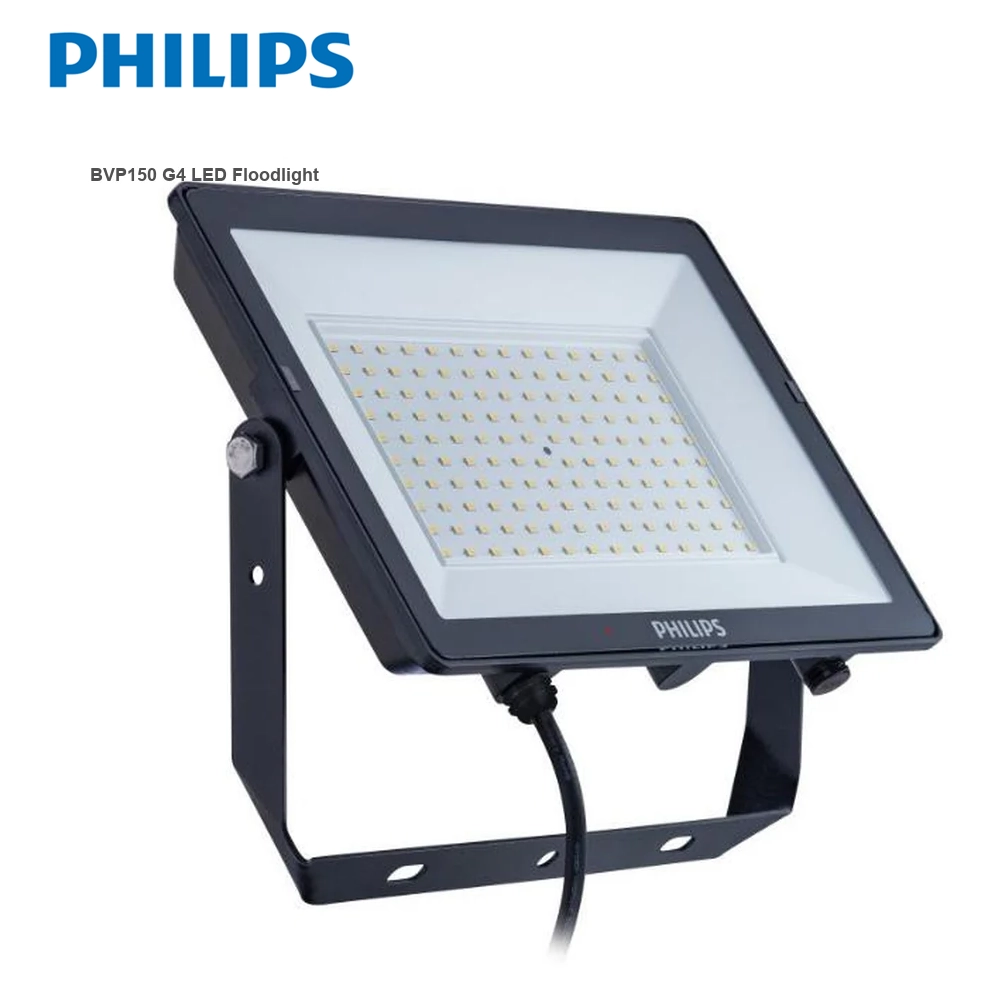

Product Overview

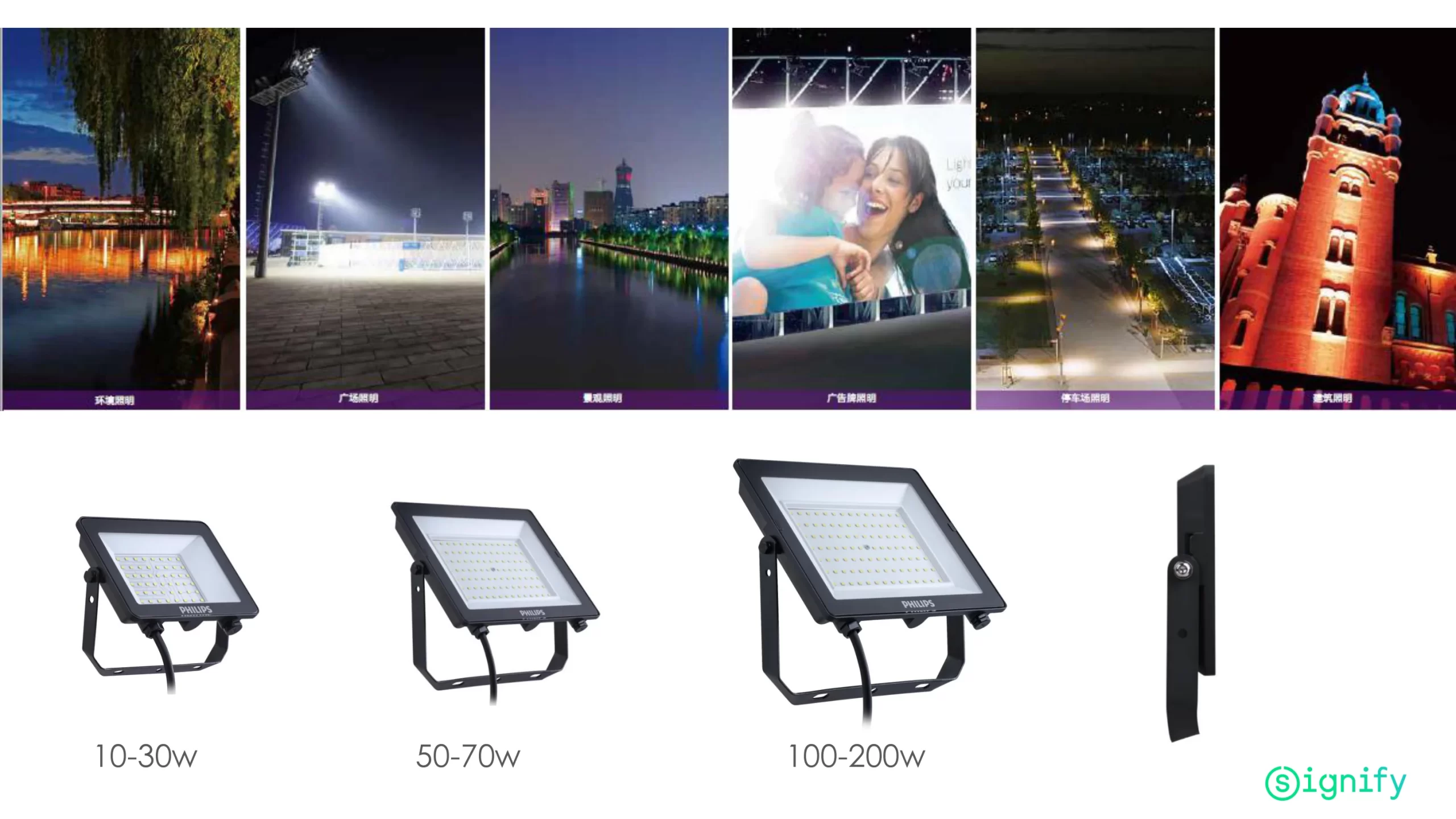

The Philips BVP150 G4 LED Floodlight is the fourth generation of Philips’ acclaimed Ming‑Xin floodlight series. Available in eight power levels from 10W to 200W, this commercial LED lighting solution offers a luminous flux of up to 20,000 lm at 4000K/6500K. With a high system efficacy of 100 lm/W, a power factor of 0.9, and a colour rendering index (CRI) of ≥80, the BVP150 G4 delivers outstanding light quality for a wide range of outdoor and industrial environments.
Engineered to withstand extreme conditions, the floodlight operates reliably from –40 °C to +50 °C and is protected against water and dust ingress with an IP65 rating. Its robust die‑cast aluminium housing (RAL 9011) and tempered glass cover ensure long‑term durability, while the integrated breather valve quickly expels any moisture caused by temperature changes – eliminating the siphon effect that can plague lesser fittings.

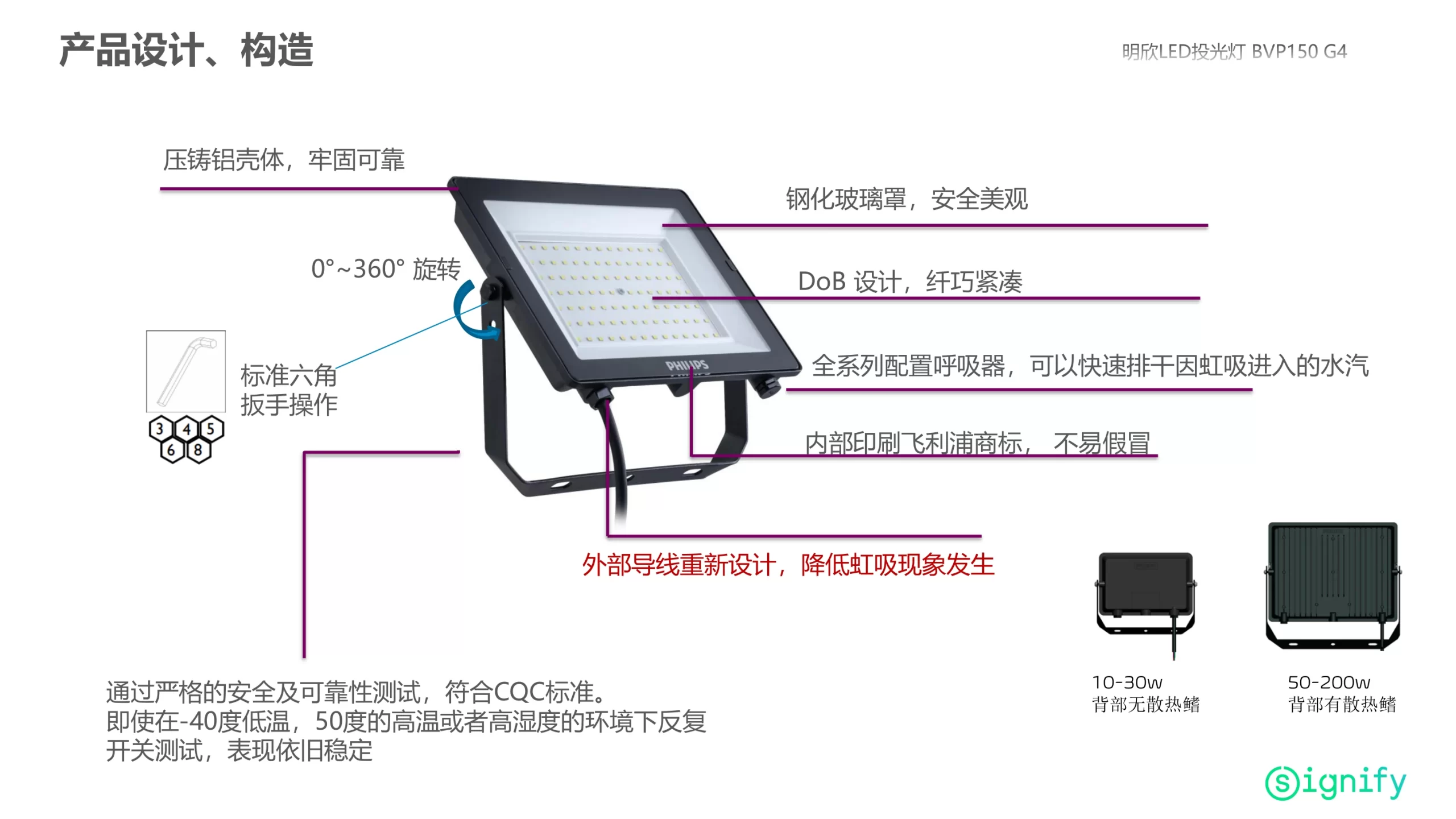

Key Features
- High Efficacy & Energy Savings – 100 lm/W system efficacy reduces electricity costs without compromising brightness.
- Extreme Temperature Resilience – Certified for operation from –40 °C to +50 °C, so you can rely on it in the harshest climates.
- IP65 / IK06 Protection – Fully dust‑tight and protected against powerful water jets; impact‑resistant for demanding sites.
- Integrated Breather Valve – Quickly drains any moisture that enters due to thermal cycling, preventing internal fogging and extending lifespan.

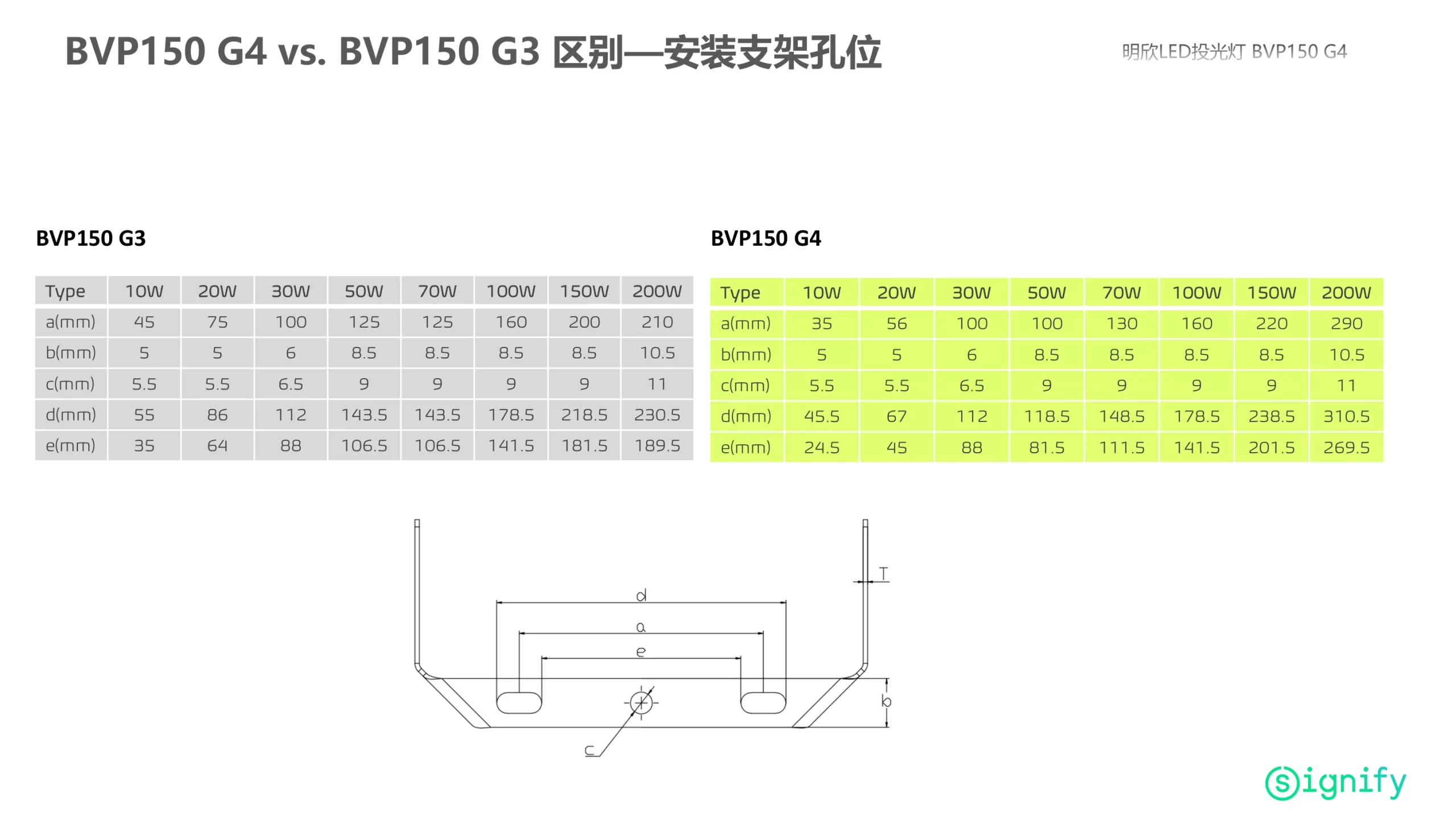

- Tool‑Free Rotation (0°–360°) – Adjust the beam direction precisely with a standard hex key; mounting bracket holes are compatible with previous generation.
- DoB (Driver‑on‑Board) Design – Compact, lightweight construction with no separate driver box, simplifying installation and reducing fixture size.
- Multiple Colour Temperatures – Choose from 3000K (warm white), 4000K (neutral white), or 6500K (cool daylight) to match the ambience of any space.
- Long Service Life – Rated for 20,000 hours L70B50 @ 25 °C, minimising maintenance and replacement intervals.

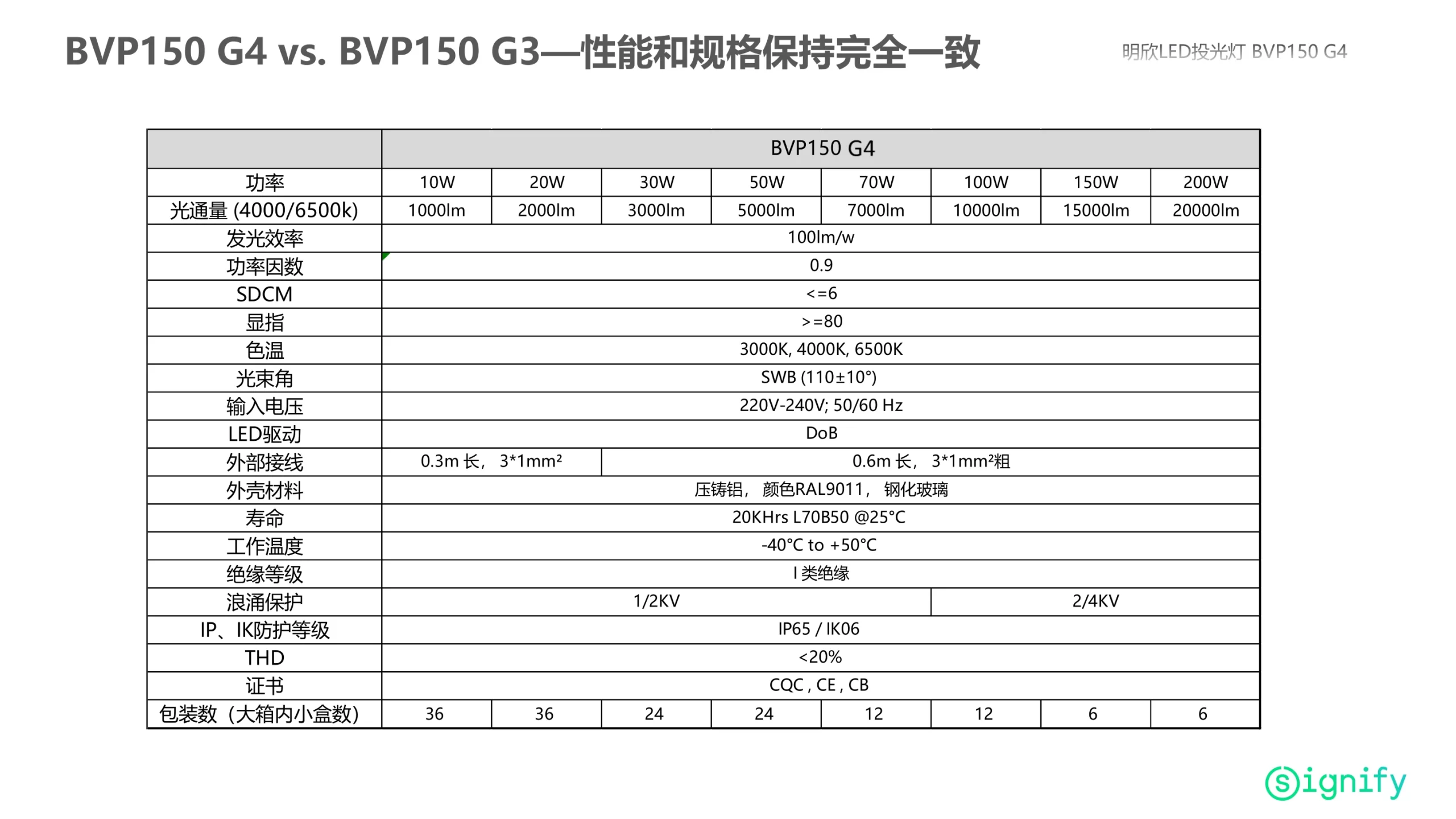

Technical Specifications
| Power (W) | Luminous Flux (lm) 4000K/6500K | Efficacy (lm/W) | Dimensions L1×W1×H (mm) | Weight (approx.) |
|---|---|---|---|---|
| 10W | 1,000 | 100 | 90 × 65 × 24 | – |
| 20W | 2,000 | 100 | 115 × 85 × 23 | – |
| 30W | 3,000 | 100 | 165 × 110 × 23 | – |
| 50W | 5,000 | 100 | 180 × 125 × 26 | – |
| 70W | 7,000 | 100 | 230 × 170 × 25.7 | – |
| 100W | 10,000 | 100 | 260 × 200 × 25.7 | – |
| 150W | 15,000 | 100 | 330 × 250 × 25.7 | – |
| 200W | 20,000 | 100 | 400 × 280 × 25.4 | – |

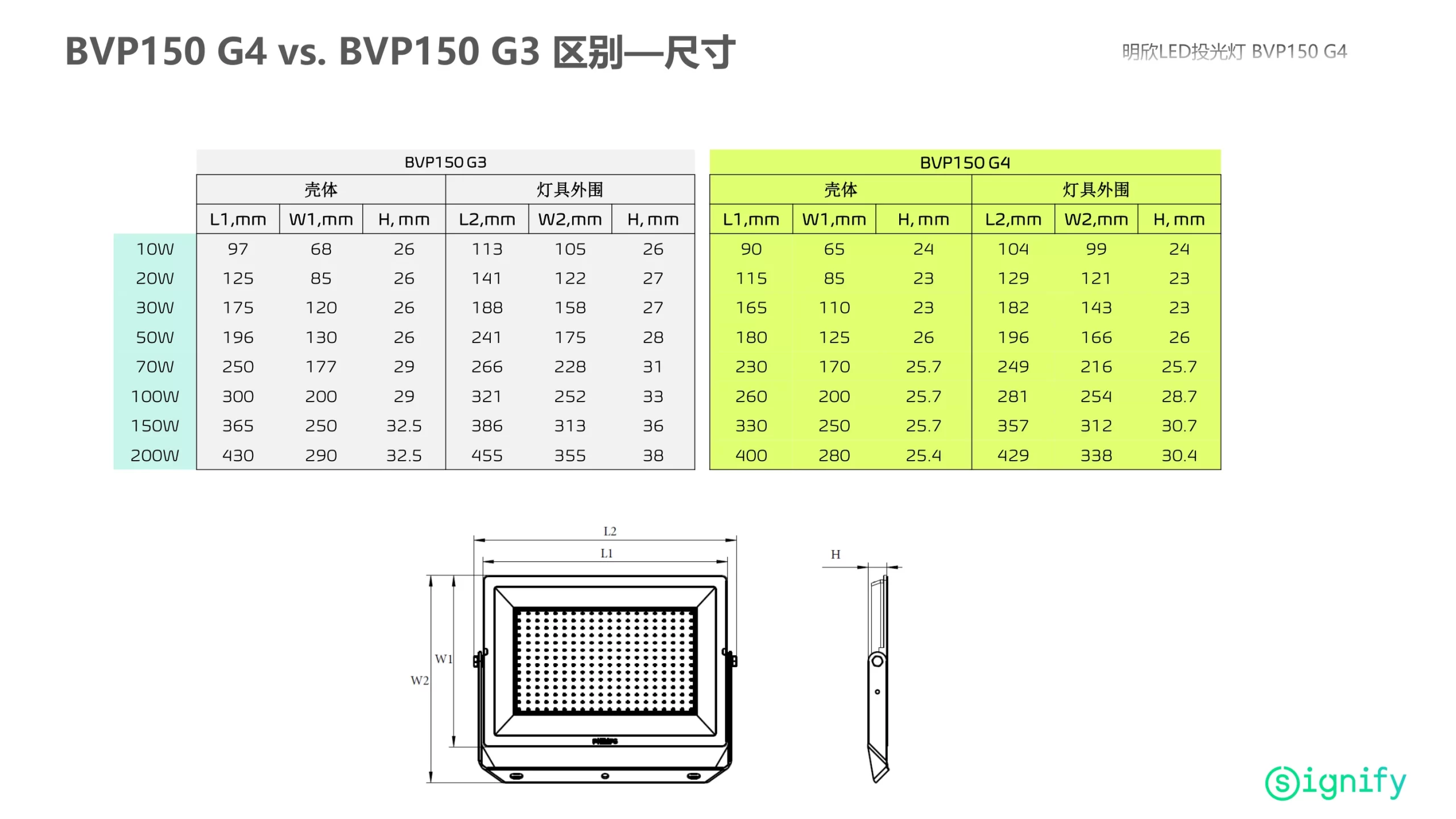

Size & Dimensions
The BVP150 G4 is designed to be more compact than its predecessor while maintaining the same mounting footprint. Below are the detailed dimensions for each variant, including the overall fixture size (L1 × W1 × H) and the overall luminaire size (L2 × W2 × H).
| Power | L1 (mm) | W1 (mm) | H (mm) | L2 (mm) | W2 (mm) | H (mm) |
|---|---|---|---|---|---|---|
| 10W | 90 | 65 | 24 | 104 | 99 | 24 |
| 20W | 115 | 85 | 23 | 129 | 121 | 23 |
| 30W | 165 | 110 | 23 | 182 | 143 | 23 |
| 50W | 180 | 125 | 26 | 196 | 166 | 26 |
| 70W | 230 | 170 | 25.7 | 249 | 216 | 25.7 |
| 100W | 260 | 200 | 25.7 | 281 | 254 | 28.7 |
| 150W | 330 | 250 | 25.7 | 357 | 312 | 30.7 |
| 200W | 400 | 280 | 25.4 | 429 | 338 | 30.4 |
Applications
The Philips BVP150 G4 LED Floodlight is the perfect choice for a wide variety of commercial, industrial and outdoor settings:
- Warehouses & Logistics Centres – High‑bay and low‑bay illumination for safe, productive operations.
- Building Facades & Architectural Lighting – Even, glare‑free light that highlights structures without light pollution.
- Parking Lots & Car Parks – Reliable, uniform coverage that enhances security and visibility.
- Sports Fields & Playgrounds – Durable enough to withstand impacts and weather, with adjustable aiming angles.
- Industrial Facilities & Workshops – Robust construction and high ingress protection suit dusty or wet environments.
- Perimeter & Security Lighting – Instant‑on, full‑brightness light to deter intruders and improve CCTV image quality.

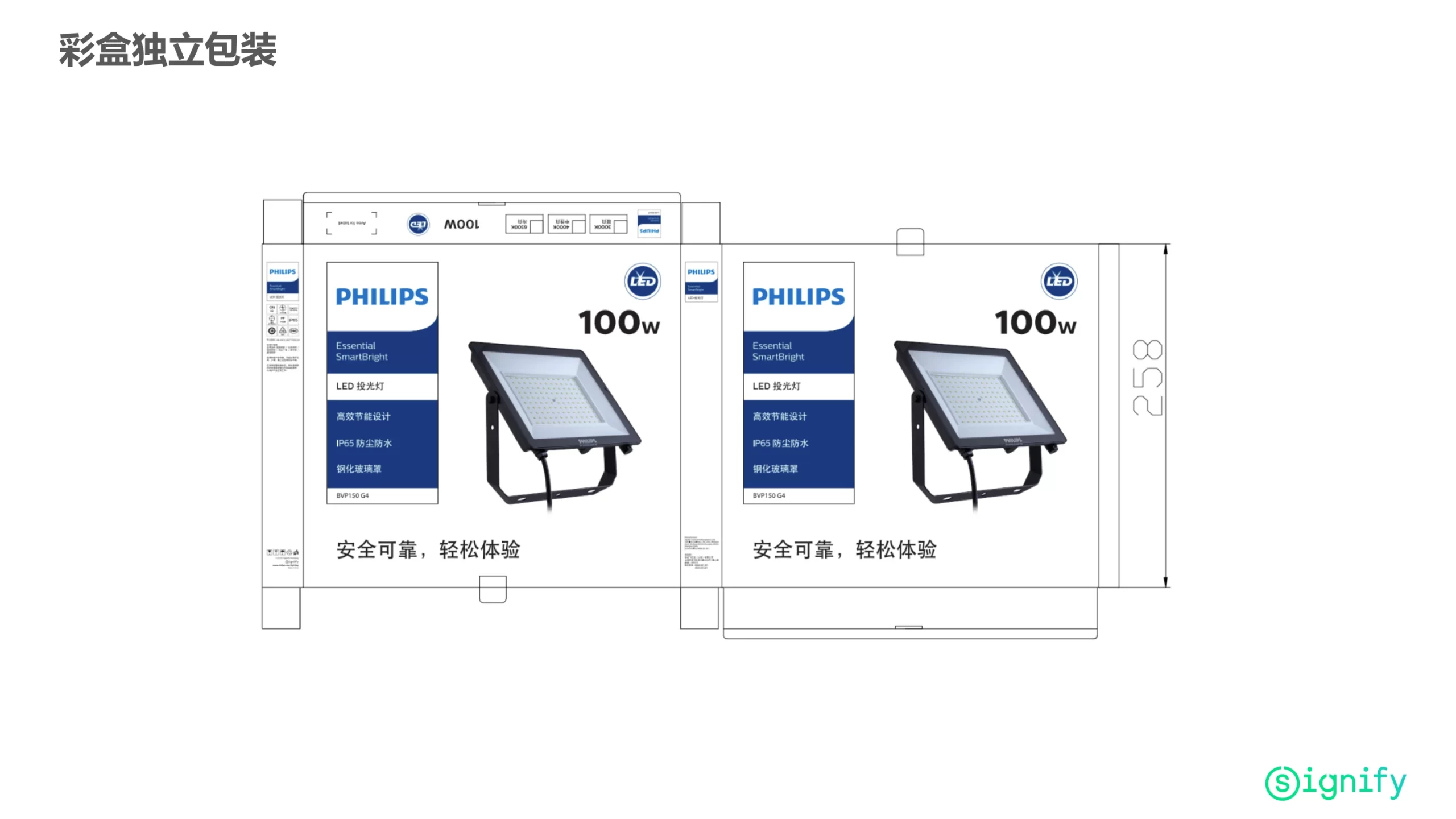

What’s in the Box
- 1× Philips BVP150 G4 LED Floodlight (selected power and colour temperature)
- 1× Pre‑wired external cable (0.3 m for 10‑30W; 0.6 m for 50‑200W)
- 1× Mounting bracket with hex key adjustment
- 1× Installation manual
